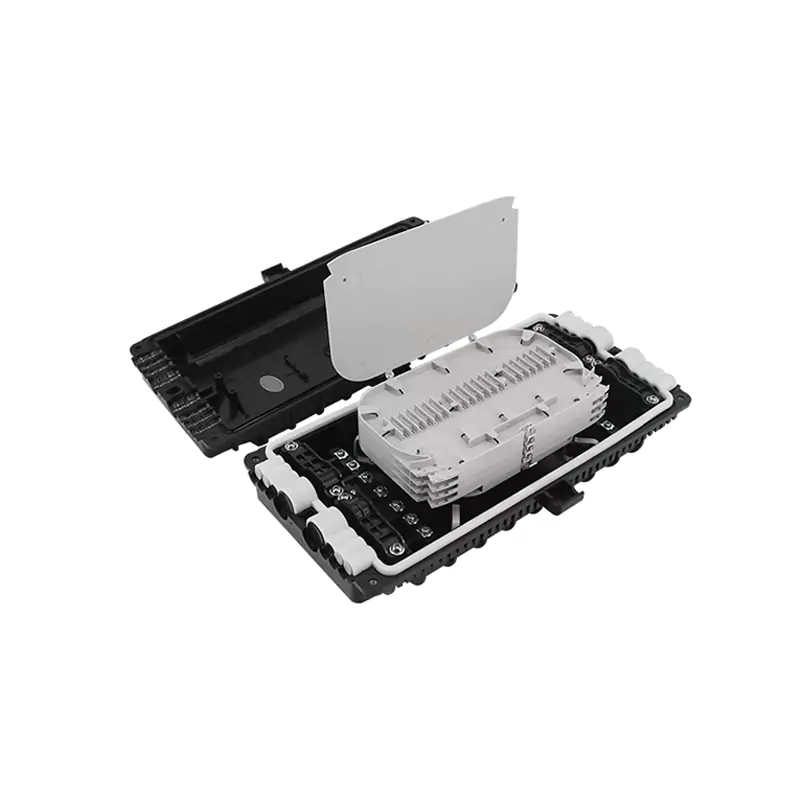

Optical Cable Joint Closure
Optical Cable Joint Closure

Optical Cable Joint Closure

Optical cable splice closure, also known as optical cable joint closure, is where the end of the optical cable is connected. It is connected to the optical switch through fiber jumpers, preventing material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength; the sturdy shell and main structural components of the optical cable joint closure can withstand the harshest environmental changes, while playing flame-retardant and waterproof roles, and protecting against vibration, impact, optical cable stretching, twisting, etc. It is suitable for through and branch connections of various structural optical cables in overhead, pipeline, direct burial and other laying methods.
Online Phone：18721624519

Features

01

The box body is injection-molded with imported reinforced plastic added with anti-aging agents, and all external fasteners are made of stainless steel and copper materials;

02

The multi-inlet and multi-outlet design provides more solutions for network construction and future community network expansion;

03

The splicing tray adopts a stacked and flip-up structure, eliminating the need to disassemble other splicing trays during operation;

04

The unique sealing design ensures excellent airtightness and waterproof performance, and features a re-openable function;

05

Suitable for splicing of stranded optical cables and ribbon optical cables;

Parameters

Box Material PP (Polypropylene) Overall Dimensions (mm) 410×255×110
Sealing Material Non-vulcanized Self-adhesive Rubber Weight (kg)
Standard Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Box Body Set 1 7 Baffle Set 1
2 Sealing Component Set 1 8 Cable Tie Set 1
3 Wall-mounted Bracket Set 1 9 Wet Wipe Pack 1
4 Fusion Splicing Protection Tube Piece/Tray 24 10 Special Wrench Piece 1
5 Plug Set 1 11 Fiber Protection Hose Piece 1
6 Insulating Tape Roll 1
Optional Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Air Nozzle Set 1 2 Overhead Mounting Kit Set 1
3 Grounding Assembly Set 1 4 Pigtail Piece
