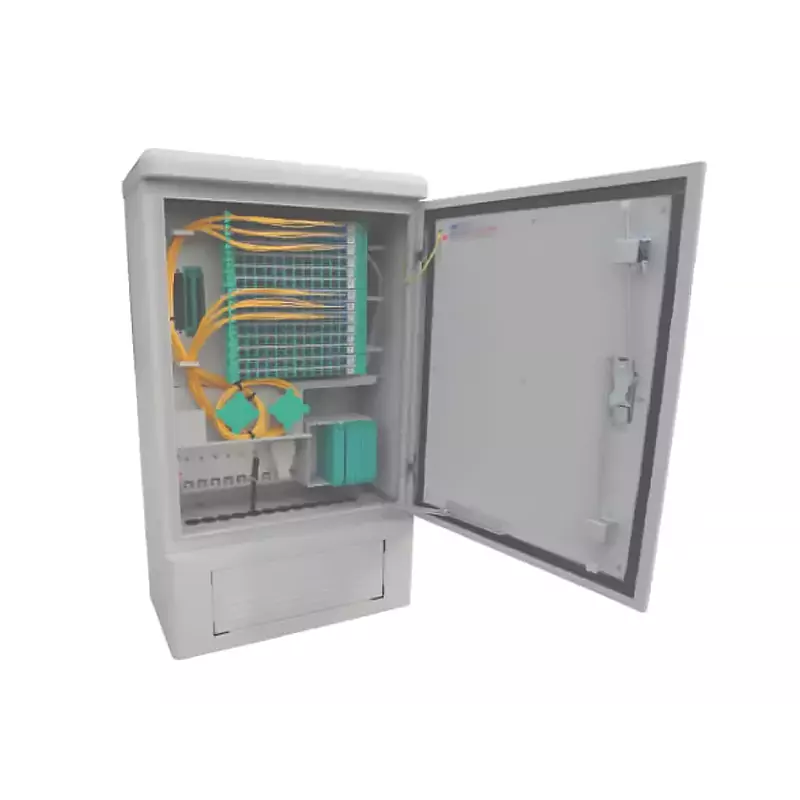

Jumperless Optical Cable Cross-Connect Cabinet
Jumperless Optical Cable Cross-Connect Cabinet

Jumperless Optical Cable Cross-Connect Cabinet

An optical cable cross-connect cabinet is a junction device that provides cable termination and patching for backbone layer optical cables and distribution layer optical cables. After the optical cable is introduced into the cross-connect cabinet, it is fixed, terminated, and fiber-distributed, and then jumpers are used to connect the backbone layer optical cables and distribution layer optical cables.
Online Phone：18721624519

Features

01

The cabinet is made of high-strength stainless steel, featuring high strength, anti-aging, corrosion resistance, and resistance to accidental or malicious damage;

02

It adopts a double-layer structure with high-performance thermal insulation material filled in between, which has excellent thermal insulation effect and can effectively prevent water vapor condensation inside the cabinet;

03

The cabinet door is equipped with a special sealed gasket, waterproof door lock and three-point door bolt locking, ensuring safety, reliability and good sealing performance;

04

Uses a 12-core integrated fusion splicing and distribution module;

05

FC and SC fiber optic adapters can be installed;

06

Equipped with reliable optical cable fixing and grounding protection devices;

07

Suitable for the termination of single-core and ribbon optical cables;

08

All corners of the cabinet are formed by special rounded corner molding dies, and the surface treatment adopts wire drawing (process).

Parameters

Cabinet Material Stainless Steel Plate Overall Dimensions (mm) 1080×600×320
Fiber Tray Capacity 144 Cores Weight (kg)
Standard Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Cabinet Body Set 1 6 Optical Cable Fixing Device Set 1
2 Nylon Cable Tie Piece 30 7 Rubber Dust Ring Piece 10
3 Expansion Bolt Piece 4 8
4 Fusion Splice Protection Sleeve Piece 144 9
5 12-Core Integrated Tray Piece 12 10
Optional Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 SC Pigtail Piece 12 3 SC Adapter Piece 144
2 FC Pigtail Piece 12 4 FC Adapter Piece 144
