ETC is a convenient high-speed toll collection method nowadays, but it requires equipment support, and the outdoor integrated cabinet is where these devices are placed. Placing the equipment in the outdoor integrated cabinet effectively ensures the normal operation of the equipment and avoids problems. So what is the design concept of the ETC outdoor integrated cabinet? Today, the editor will introduce in detail the "design concept of ETC outdoor integrated cabinets".
I. Design Concept of ETC Outdoor Integrated Cabinets
1. Innovative Structural Design: The expressway integrated intelligent cabinet of Yitong Technology adopts an innovative "assembled modular" structural design, allowing customers to quickly install on-site. Each functional module is installed step by step, with reserved wire slots, holes, and plug-in terminals; equipment installation is convenient, and cable routing is simple and neat.
2. Functional Modular Design: The expressway integrated intelligent cabinet of Yitong Technology integrates multiple functional modules including power conversion and supply, backup power (N+1) energy storage, data collection, digital alarm, camera unit, and intelligent temperature control, achieving high reliability, high integration, and easy maintenance of the product.
3. Remote Network Management Function: The supporting background equipment operation and maintenance management system for the expressway integrated intelligent cabinet of Yitong Technology can, in accordance with the Party A's needs, remotely monitor the status of equipment in the expressway integrated intelligent cabinet (equipment working status, inverter and rectifier power supply operation status, environmental status, door opening and closing status, etc.), handle work abnormalities or equipment failures (automatic inspection, active alarm, 1000 log records, GPS positioning, automatic equipment online, etc.), and perform real-time remote management (information query, parameter configuration, automatic synchronization, remote switch control, etc.).

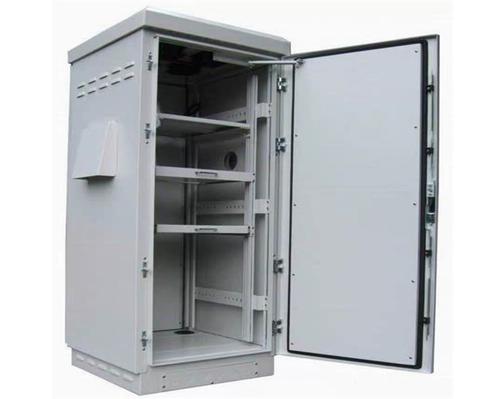

II. Technical Parameters of Outdoor Integrated Cabinets
1. The cabinet features dustproof, sunproof, and rainproof properties, fully adapting to outdoor environments.
2. The equipment compartment adopts ventilation for heat dissipation, and a heat exchanger can be selected as the heat dissipation equipment.
3. The battery cabinet uses semiconductor refrigeration.
4. The cabinet has power and environmental monitoring functions, capable of realizing and uploading alarms for power failure, power fault, access control, temperature, humidity, smoke, water immersion, battery voltage, etc.
5. The cabinet has a reasonable layout, facilitating operations such as cable introduction, fixing, and grounding, as well as maintenance. Power cables, signal cables, and optical cables have independent entry holes to avoid mutual interference.
6. All cables used in the cabinet are made of flame-retardant materials.
7. The cabinet is assembled on-site.
