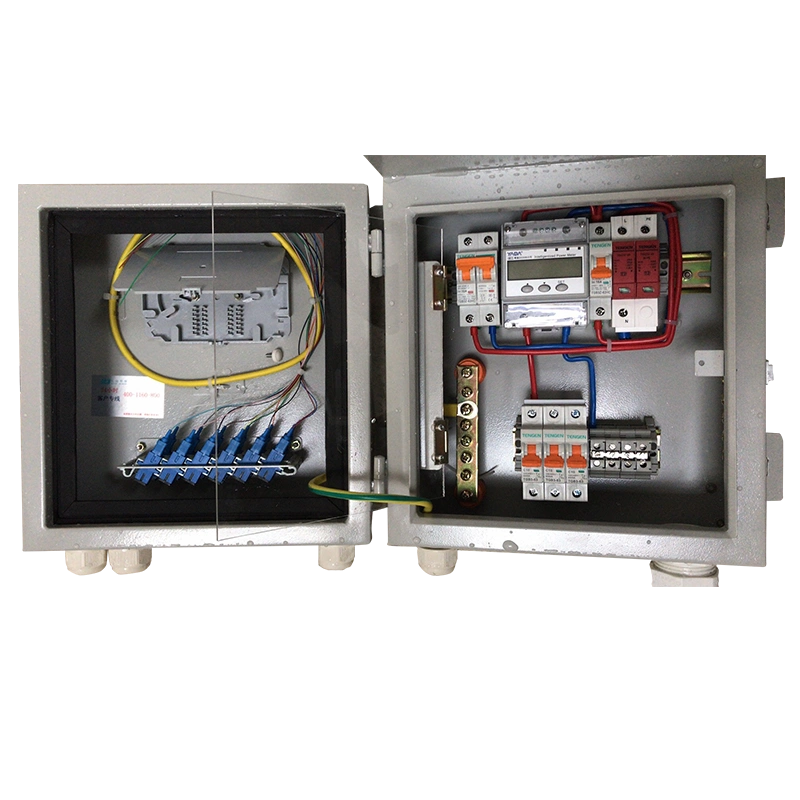

Optoelectronic Integrated Box
Optoelectronic Integrated Box

Optoelectronic Integrated Box

Optoelectronic integrated box provides fulcrums for future urban main road signal coverage and integrates with existing urban facilities. It is suitable for communication base stations and micro stations, integrating the functions of optical cable distribution box and AC/DC power distribution box, completing the connection, distribution and scheduling between external optical cables and optical fiber terminal equipment, and also having AC/DC power distribution management functions. It can be applied to residential areas, streets and alleys, commercial dense areas, underground parking lots and other places.
Online Phone：18721624519

Features

01

The cabinet is made of high-quality cold-rolled steel plate (grade Q235-A) with a spray-painted surface. It is corrosion-resistant, aging-resistant, has a long service life and excellent mechanical properties.

02

It can realize the interconnection, cross-connection of optical cables and the storage of optical fibers.

03

Equipped with reliable optical cable fixing and grounding protection devices.

04

It has functions such as optical fiber splicing, storage and distribution. The configuration is compact and attractive, with convenient operation.

05

The equipment supports three installation methods: floor-mounted (with ground bracket), wall-mounted and pole-mounted.

Parameters

Main Performance Indicators:

Operating Temperature: -5℃～+40℃

Storage Temperature: -25℃～+55℃

Relative Humidity: ≤85% (at +30℃)

Atmospheric Pressure: 70Kpa～106Kpa

Insulation Resistance Between High-Voltage Protection Ground and Cabinet: ＞2×10⁴MΩ

Withstand Voltage Between High-Voltage Protection Ground and Cabinet: ＞3KV (DC) for 1 minute, no breakdown or flashover
