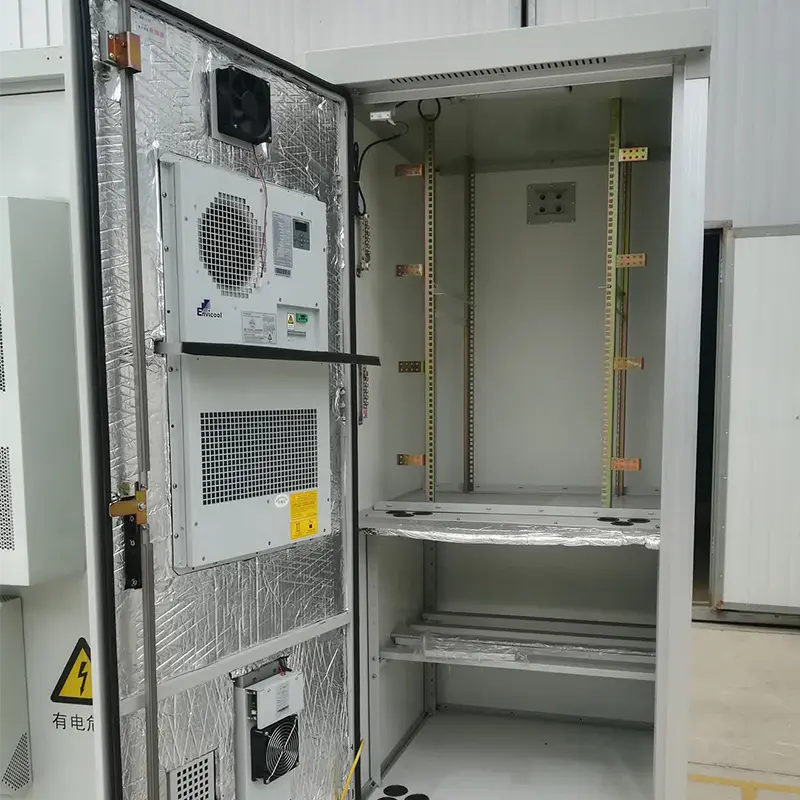

Outdoor Integrated Communication Cabinet
Outdoor Integrated Communication Cabinet

Outdoor Integrated Communication Cabinet

Outdoor integrated communication cabinet is a comprehensive access network equipment suitable for outdoor use. It can meet the installation of broadband and switch equipment (optional); power connection; termination of communication distribution lines; entry and exit of optical and electrical cables; access control monitoring, and can provide access control switch alarm signals, with good anti-theft performance. It adopts air conditioning technology and thermal insulation design to achieve reliable temperature management of the outdoor cabinet, ensuring the safe operation of communication equipment inside the cabinet in harsh environments such as high temperature and extreme cold. Under outdoor installation conditions, it can resist the impact of sand, rain, and sunlight radiation. According to the different equipment installed in the cabin, a single cabin can be divided into equipment cabin, battery cabin, mixed cabin (i.e., comprehensive equipment cabin), etc.; the multi-cabin structure is a geometric combination of the above several single-cabin structures, which can be combined into an outdoor double-cabin or triple-cabin according to actual needs.
Online Phone：18721624519

Features

01

The cabinet is made of high-quality sheet metal as the main material, featuring excellent mechanical and anti-corrosion properties as well as superior weather resistance.

02

Surface sprayed with UV-resistant powder and adopting a double-layer thermal insulation design, it has high strength and an attractive appearance.

03

Standard 19-inch installation method for flexible configuration.

04

Full front-side operation, saving equipment room space.

05

Separation of strong and weak electricity with special wiring troughs, and all cable entry and jumper connection operations are carried out from the front.

06

Sufficient fiber storage space is provided. Non-standard cabinets can be customized according to requirements.

Parameters

Product Technical Indicators:

1) All technical performance indicators comply with GB4208-1993 and meet the enclosure protection level IP65.

2) Cabinet Part

The high-voltage protection ground of the cabinet is insulated from the cabinet, with an insulation resistance >1000MΩ/500VDC (corrected "MV" to industry-standard "MΩ").

Withstand voltage between the cabinet's protection ground and the cabinet: >3000VDC for 1 minute, no breakdown or flashover.

3) Air Conditioner Start/Stop Points

Internal circulation: Operates continuously.

External circulation: Starts when the internal temperature reaches 35℃; stops when the internal temperature drops to 30℃.

4) Fan: Starts at 35℃ and stops at 27℃±4℃.

5) Heat Exchanger Start/Stop Points

Internal circulation: Operates continuously.

External circulation: Starts when the internal temperature reaches 35℃; stops when the internal temperature drops to 25℃.

6) Surge Protector (SPD) Technical Indicators

a) Flame Retardant Grade: UL94V-0

b) Insulation Resistance: ＞500MΩ (supplemented standard unit "Ω")

c) Rated Voltage: ～250V

d) Surge Protection Capacity: ≤20000A

e) Rated Current: 20A

Operating Environment Indicators:

Operating Temperature: -20℃～+60℃

Storage Temperature: -40℃～+65℃

Operating Relative Humidity: Not more than 80% (at +30℃)

Storage Relative Humidity: ≤90%～96% (at 40℃±2℃)

Atmospheric Pressure: 70～106kpa
