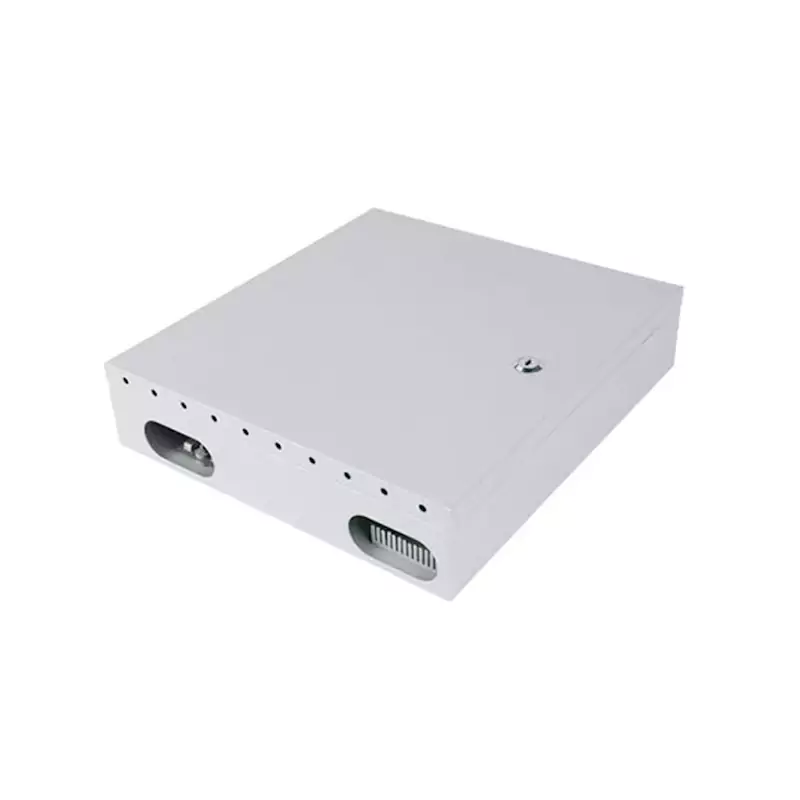

Book-Type Metal Termination Box

Book-Type Metal Termination Box

Optical cable termination box series products are auxiliary equipment for terminal distribution in optical fiber transmission communication networks. They are suitable for direct and branch splicing of indoor or outdoor optical cables and protect fiber optic connectors. The optical cable termination box is mainly used for fixing the optical cable terminal, fusion-splicing the optical cable with pigtails, and accommodating and protecting the excess fiber.
Online Phone：18721624519

Features

01

Suitable for the terminal protection of single-core optical fiber cables;

02

Easy to operate, can be installed on the wall of the equipment room or fixed in the cabinet with brackets;

03

Used for splicing and distribution between outdoor optical cables and pigtails of switching equipment, equipped with a reliable grounding protection device;

04

Capable of installing SC and FC fiber pigtails;

05

Can meet the splicing requirements for terminals of optical cables with a diameter of Φ8～18mm;

Parameters

Index Category Operating Environment Requirements Storage Environment Requirements
Temperature -25℃～+40℃ -25℃～+55℃
Relative Humidity Not more than 85% (at 30℃) 90%～96% (at 40℃±2℃)
Atmospheric Pressure 70 kPa～106 kPa 70 kPa～106 kPa



Box Material Cold-Rolled Steel Plate Overall Dimensions (mm) 150×105×26
Fiber Tray Capacity 12 Cores Weight (kg)
Standard Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Shell Set 1 6 Optical Cable Fixing Set 2
2 Nylon Cable Tie Piece 4 7 Rubber Dust Ring Piece 2
3 Self-Tapping Screw Piece 2 8
4 Plastic Expansion Tube Piece 2 9
5 Fiber Tray (Including Cover Plate) Sheet 2 10
Optional Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 SC Pigtail Piece As Required
2 FC Pigtail Piece As Required
