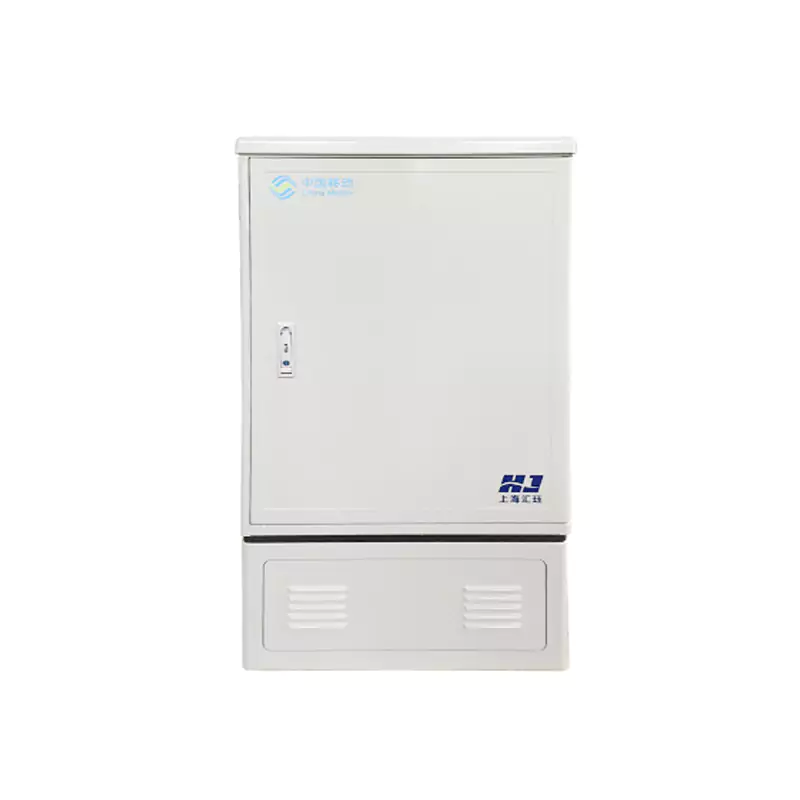

Jumperless Optical Cross-Connect Cabinet

Jumperless Optical Cross-Connect Cabinet

An optical cable cross-connect cabinet is a junction device that provides cable termination and patching for backbone layer optical cables and distribution layer optical cables. After the optical cable is introduced into the cross-connect cabinet, it is fixed, terminated, and fiber-distributed, and then jumpers are used to connect the backbone layer optical cables and distribution layer optical cables.
Online Phone：18721624519

Features

01

The box body is made of high-strength stainless steel, featuring high strength, anti-aging, corrosion resistance, and resistance to accidental or malicious damage;

02

The box adopts a double-layer structure filled with high-performance thermal insulation materials in the middle, which has a good thermal insulation effect and can effectively prevent water vapor condensation inside the box;

03

The box door is equipped with a special sealing gasket, waterproof door lock and three-point door pin locking, ensuring safety, reliability and excellent sealing performance;

04

Equipped with a 12-core integrated fusion splicing and distribution module;

05

Capable of installing FC and SC fiber optic adapters;

06

Equipped with reliable optical cable fixing and grounding protection devices;

07

Suitable for the termination of single-core and ribbon optical cables;

Parameters

Item Index Requirement
Operating Temperature ‑40 ℃ ～ +60 ℃
Storage Temperature ‑40 ℃ ～ +60 ℃
Relative Humidity ≤95 % (at +40 ℃)
Atmospheric Pressure 70 kPa ～ 106 kPa
Connector Attenuation (Insertion, Interchangeability, Repeatability) ≤0.3 dB
Return Loss ≥50 dB
Plugging Durability Life ＞1,000 Cycles
Insulation Resistance Between High-Voltage Protective Ground and Cabinet ＞1,000 MΩ / 500 V (DC)
Withstand Voltage Between High-Voltage Protective Ground and Cabinet ＞3,000 V (DC) / 1 min, no breakdown, no arcing

Ordering Guide:

Box Material Stainless Steel Plate Overall Dimensions (mm) 1080×600×320
Fiber Tray Capacity 144 Cores Weight (kg)
Standard Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Cabinet Set 1 6 Optical Cable Fixing Set 1
2 Nylon Cable Tie Piece 30 7 Rubber Dust Ring Piece 10
3 Expansion Bolt Piece 4 8
4 Fusion Splicing Protection Tube Piece 144 9
5 12-Core Integrated Tray Piece 13 10
Optional Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 SC Pigtail Piece 13 3 SC Adapter Piece 12
2 FC Pigtail Piece 13 4 FC Adapter Piece 12
