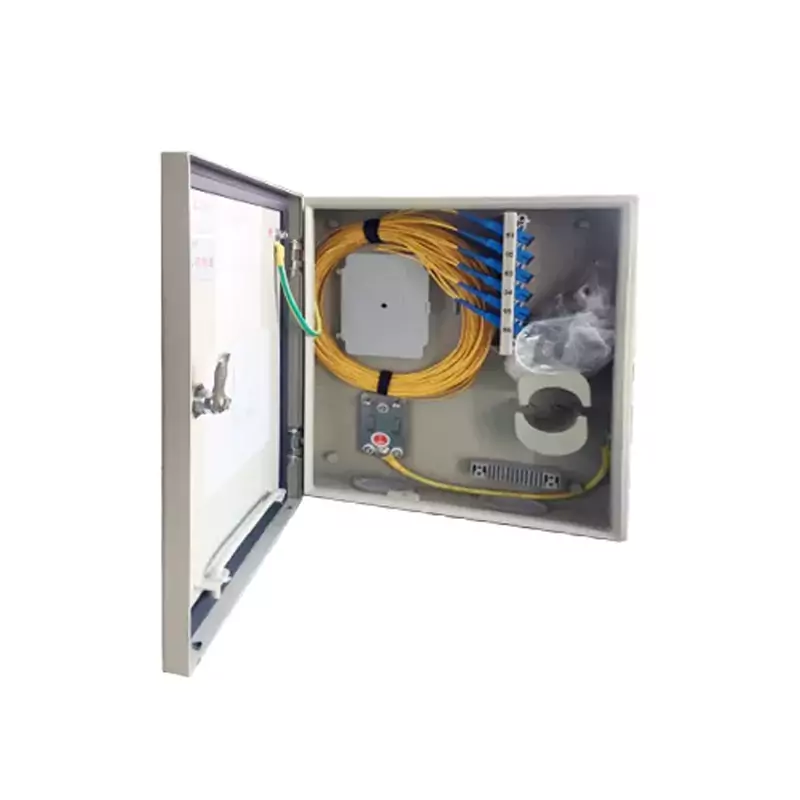

12-core Metal Optical Cable Distribution Box

Meets the fusion splicing, optical splitting, distribution and protection connection requirements for 1~2 optical cables (Φ8~15mm) and 12 distribution pigtails (or drop cables) at the terminal;

Maximum Capacity: 12 cores; Protection Class: IP55;

Adapters/Pigtails: 12-core termination with fiber optic adapters is available; SC and FC adapters are optional;

Equipped with a reliable fixing device for optical cables and drop cables;

A fiber parking position device can be installed inside the cabinet;

The fiber distribution box adopts a left-right optical distribution structure, enabling convenient and quick fiber fusion splicing and termination operations;

The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, making the box easy to open and close;

Built-in fiber fusion protection device and fiber adapter fixing device;
