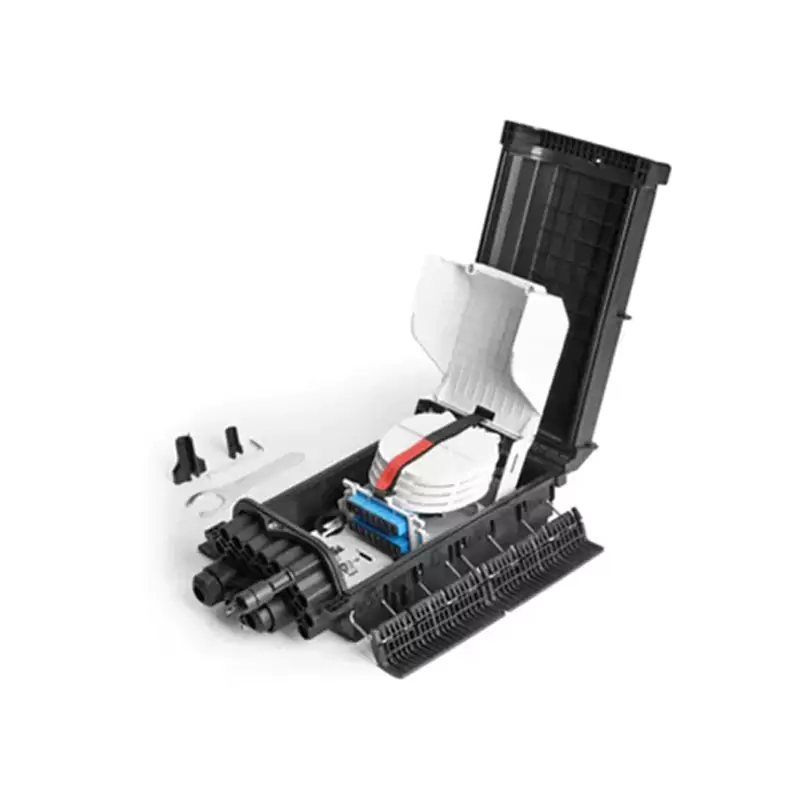

Special-Type Splice Closure

Special-Type Splice Closure

Optical cable splice closure, also known as optical cable joint closure, is where the end of the optical cable is connected. It is connected to the optical switch through fiber jumpers, preventing material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength; the sturdy shell and main structural components of the optical cable joint closure can withstand the harshest environmental changes, while playing flame-retardant and waterproof roles, and protecting against vibration, impact, optical cable stretching, twisting, etc. It is suitable for through and branch connections of various structural optical cables in overhead, pipeline, direct burial and other laying methods.
Online Phone：18721624519

Features

01

Cable Ports: 1 non-cut optical cable port (suitable for diameter 10~17.5mm), 1 branch cable port (suitable for diameter 10~17.5mm), and 16 outgoing cable ports (suitable for 2*3 drop cables and round cables with diameter 3~8mm);

02

Capacity: Single fiber reel holds 24 cores, up to 4 fiber reels can be installed, with a maximum capacity of 96 cores;

03

Protection Class: IP68. Mechanical Sealing: Excellent sealing performance, re-openable;

04

Adapters: Capable of installing 16 SC adapters; Optical Splitters: Capable of installing 2 1:8 micro optical splitters;

05

Installation Methods: Wall-mounted, overhead; Screwless structure, the box adopts a flip-up design, featuring small size, full functionality and easy use;

06

Plug-and-play, enabling optical signal distribution and connection;

Parameters

Box Material Polymer Modified Plastic Overall Dimensions (mm) 370×210×124
Sealing Material Non-vulcanized Self-adhesive Rubber Weight (kg) 2.5-3.0
Standard Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Box Body Set 1 7 Cable Tie Set 1
2 Sealing Component Set 1 8 Wet Wipe Pack 1
3 Wall-mounted Bracket Set 1 9 Special Wrench Piece 1
4 Fusion Splicing Protection Tube Piece/Tray 24 10 Fiber Protection Hose Piece 1
5 Plug Set 1
6 Insulating Tape Roll 1
Optional Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Air Nozzle Set 1 2 Overhead Mounting Kit Set 1
